Nitrogen Generator
Carbon Molecular Sieves
Collaboration Case
We use air as raw material and carbon molecular sieves (CMS) as absorbents. At specific pressures, CMS absorbs much more oxygen from the air than it absorbs nitrogen. Therefore, by controlling the switch with an automatic pneumatic valve, Tower A and Tower B can operate alternately to achieve the process of pressurized adsorption and depressurized desorption, thus completing the separation of adsorbents, separating oxygen and nitrogen, and achieving the target purity of nitrogen.

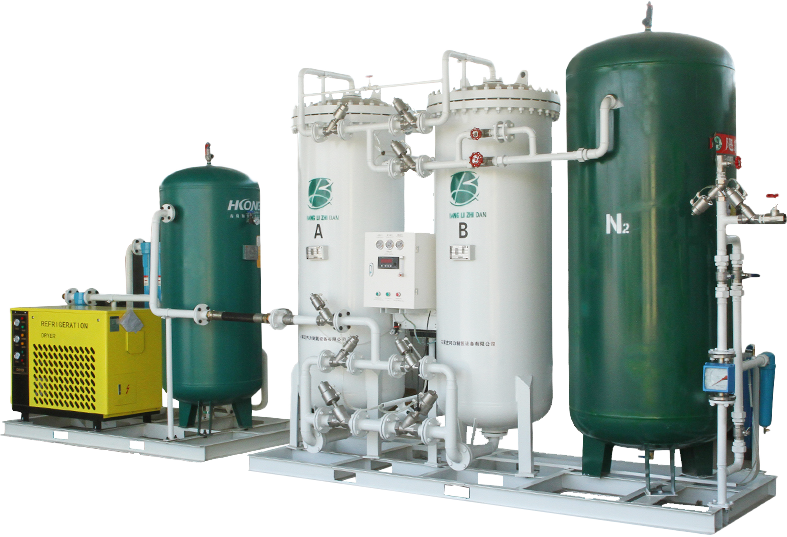

PSA nitrogen generator
View Details
Energy saving up to 10% to 30%
For 40 years, we have been dedicated to product research and application, with multiple advanced process technologies, selection of high-quality adsorbents, and development and application of high-performance programmable valves. Compared to other Nitrogen Generator Energy savings up to 10% to 30%.
Twenty years of usage time
The entire machine is designed to last for up to 20 years
The main components such as pressure vessels, program-controlled valves, pipelines, filters, etc. have a 20-year quality guarantee
Rigorous application condition design
Under the following operating conditions, the nitrogen production equipment operates stably and continuously at full load< Environmental temperature:- 20 ℃~+50 ℃
Environmental humidity: ≤ 95%
Atmospheric pressure: 80kPa~106kPa
Note: Special design is allowed if it is not within the above operating range
Easy installation and maintenance
Compact and reasonable modern industrial design, optimized shape, fine craftsmanship, compared with other nitrogen production equipment, it has high reliability, long service life, small installation area, and easy installation and maintenance.
● The accessories are all well-known domestic and foreign brands, with reliable quality and high nitrogen production stability;
● Equipped with multiple filters, effectively extending the lifespan of molecular sieves;
● The nitrogen outlet is equipped with a precision filter, making the nitrogen cleaner;
● Realize unmanned remote start stop operation and real-time monitoring of operating status;
● The nitrogen detector displays purity in real-time and has high reliability;
● Unique gas distribution design, high utilization rate of compressed air;
● Purity, pressure, and flow rate are stable and adjustable to meet the needs of different industries;

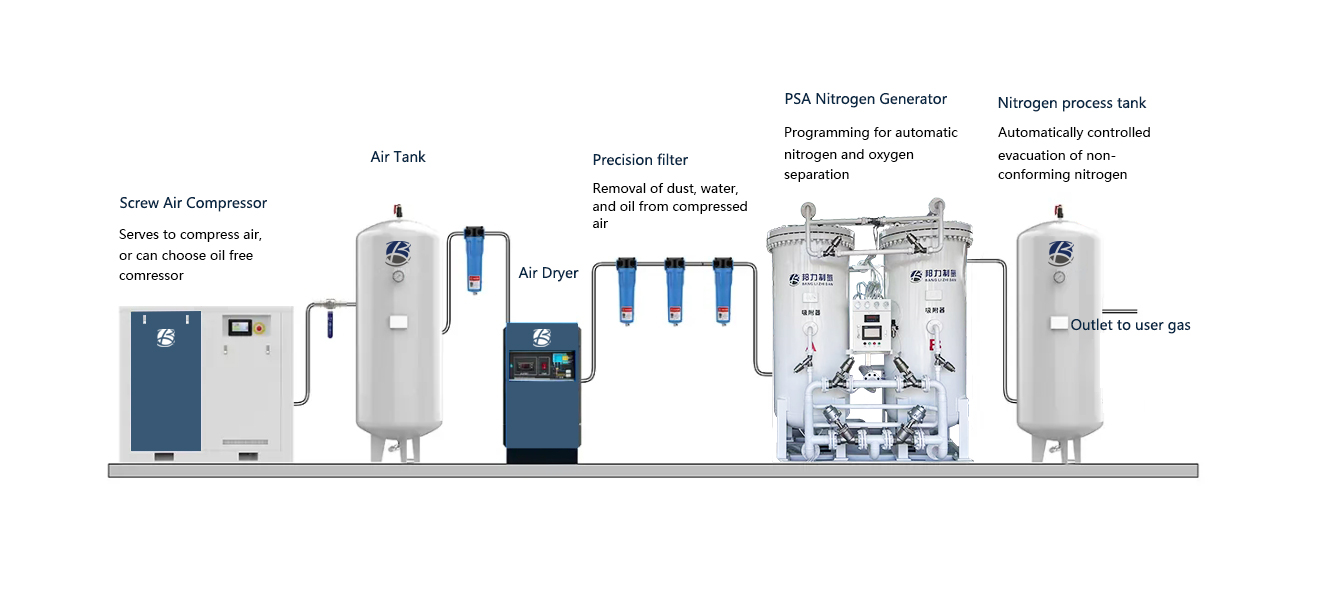

The PSA nitrogen generator system mainly consists of the following components
● Processing capacity -1~3000Nm3/h
● Purity -95% to 99.9999%
● Pressure -0.1-0.8MPa (adjustable)
● Dew point - ≤ -40 ℃ to -70 ℃
● Note: If you require higher oxygen content and dew point, please contact us to learn more about nitrogen purification device solutions
