The box type nitrogen generator is designed and manufactured using pressure swing adsorption technology, using high-quality carbon molecular sieve (CMS) as the adsorbent, and utilizing the principle of pressure swing adsorption (PSA) at room temperature to separate air and produce high-purity nitrogen gas. It has the characteristics of convenience and mobility, small footprint, high gas production, and precise purity. Both box type and pry type can be quickly and conveniently moved, suitable for different sites and geographical environments, and can produce gas 24/7.

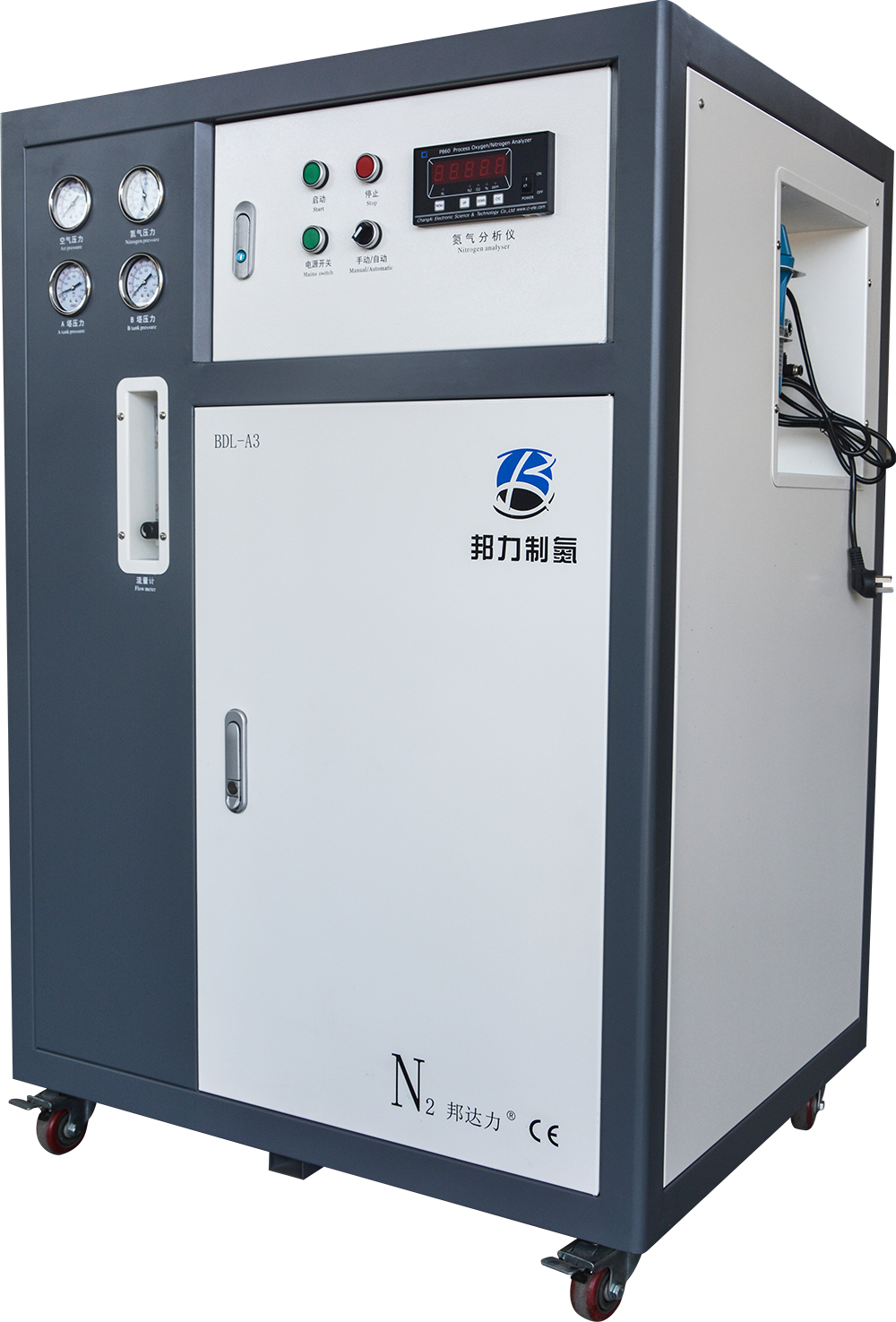

Box type nitrogen generator
View Details
Energy saving up to 10% to 30%
For 40 years, we have been dedicated to product research and application, with multiple advanced process technologies, selection of high-quality adsorbents, and development and application of high-performance programmable valves. Compared to other Nitrogen Generator Energy savings up to 10% to 30%.
Twenty years of usage time
The entire machine is designed to last for up to 20 years
The main components such as pressure vessels, program-controlled valves, pipelines, filters, etc. have a 20-year quality guarantee
Rigorous application condition design
Under the following operating conditions, the nitrogen production equipment operates stably and continuously at full load< Environmental temperature:- 20 ℃~+50 ℃
Environmental humidity: ≤ 95%
Atmospheric pressure: 80kPa~106kPa
Note: Special design is allowed if it is not within the above operating range
Easy installation and maintenance
Compact and reasonable modern industrial design, optimized shape, fine craftsmanship, compared with other nitrogen production equipment, it has high reliability, long service life, small installation area, and easy installation and maintenance.
● Independent integration: The system standard includes built-in air handling system and nitrogen purification device;
● Multiple protection: Combined air pretreatment system extends the service life of molecular sieves;
● Intelligent and convenient: one click start, fully automatic operation, providing nitrogen gas at any time, no safety hazards;
● Reliable and efficient: Designed for uninterrupted operation 24/7, the equipment is reliable and cost-effective;
● Quiet operation: The sturdy and specially designed chassis significantly reduces noise interference;
● Free movement: equipped with movable casters, the equipment can be flexibly placed at any gas point and beside the equipment;
● Easy installation: "plug and play" design, convenient and fast;
● Processing capacity -1-200Nm3/h
● Purity -99% to 99.9995%
● Pressure - adjustable from 0.1 to 0.8 MPa
● Dew point - ≤ -40 ℃ to -70 ℃
